Using Perfetto GUI to view kernel traces

Once we convert our CTF trace to the Perfetto protobuf format, we can load it to the GUI. The following article is a simple feature tour.

Our example trace is a recording of an idling 4-core ia32 target emulated on QEMU with UART console.

Loading the trace file

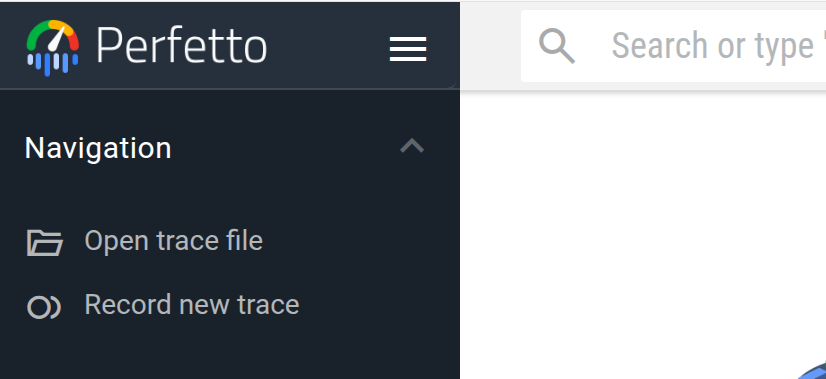

Navigate to https://ui.perfetto.dev/ and open the converted file via “Open trace file”:

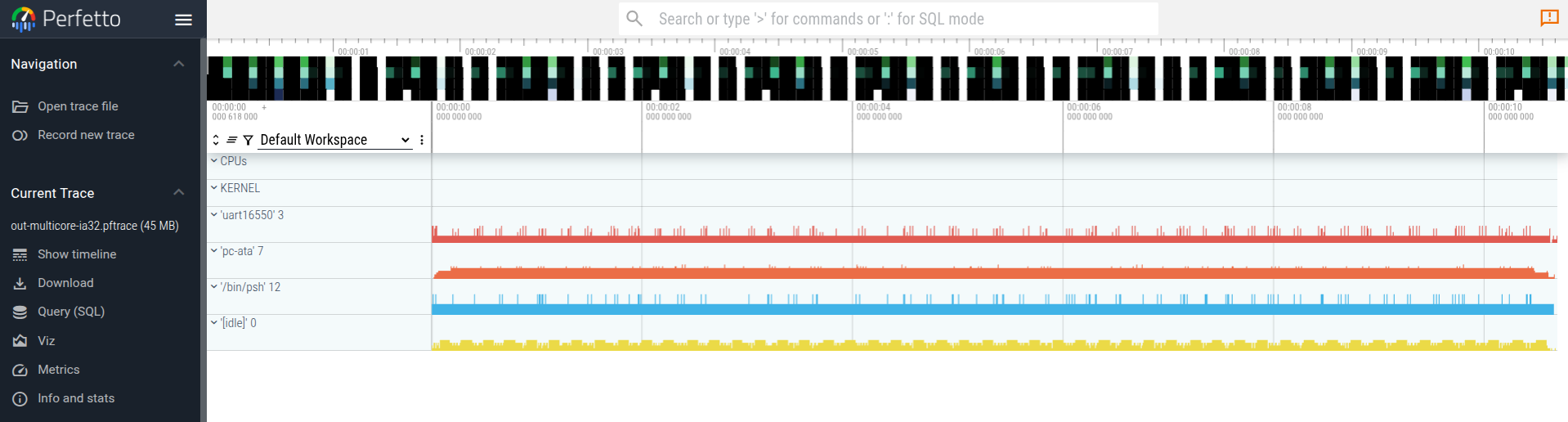

If everything succeeds, you should see a timeline of expandable processes, like here:

Basics - What am I looking at?

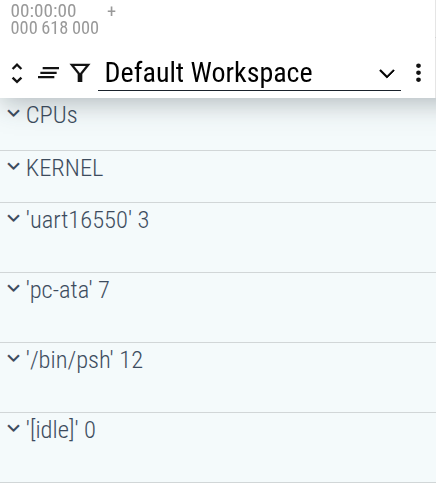

Looking closer at the track list, we see:

The “CPUs” and “KERNEL” tracks are special. The rest consists of process tracks.

A track can be expanded by clicking before its name. One can also expand all tracks by clicking in the top-left corner.

The track filtering capabilities for the time being are known to be buggy (on Perfetto’s end), so exploring the option is left as an exercise to the reader.

“CPUs” track

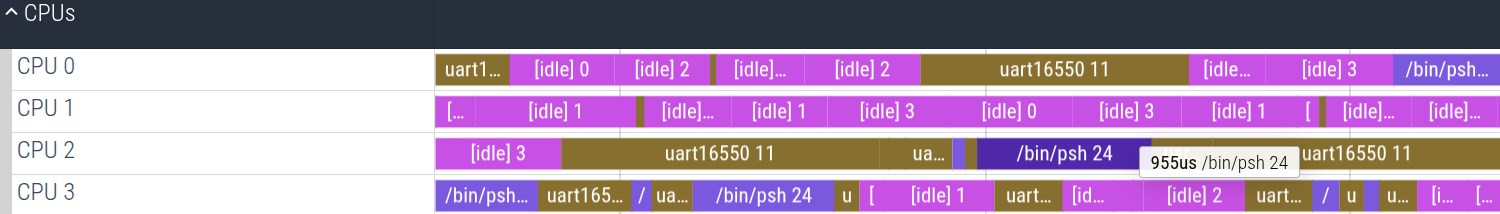

Upon expanding the “CPUs” track and zooming in a bit (either with Ctrl+ScrollUp/Ctrl+ScrollDown or W/D keys) we can see what thread is executing at a given time on each CPU core:

“KERNEL” track

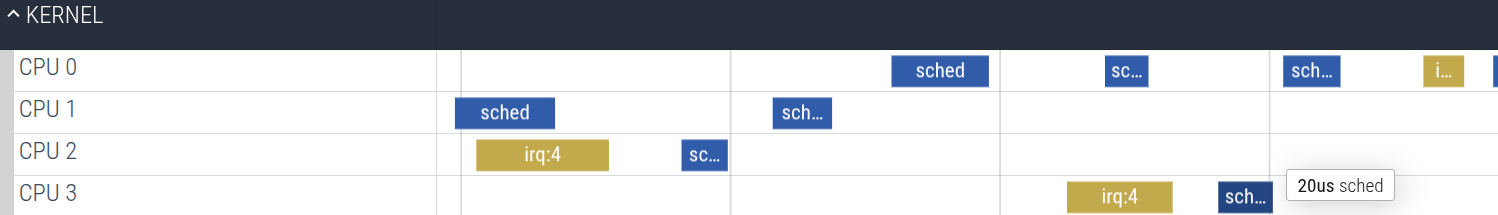

The “KERNEL” track contains a subtrack for each CPU core with specific kernel-space events occurring that cannot be bound to any kernel thread such as IRQs, scheduler invocation, etc.:

Process tracks

We can see that there were 4 processes running:

1. uart16550 driver process - 'uart16550' 3

2. ATA disk driver - 'pc-ata' 7

3. main psh process - '/bin/psh' 12

4. idle process - '[idle]' 0

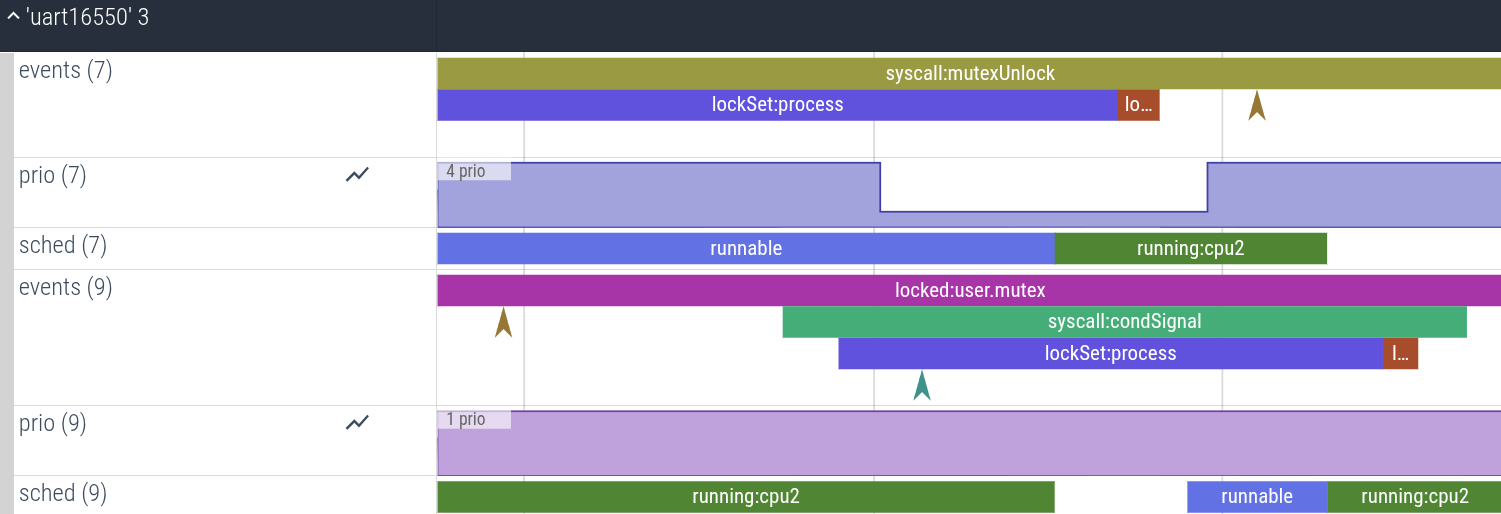

Every process track can be expanded to unveil its thread tracks. Here we expand uart16550 process that has i.e. threads with TIDs 7 and 9 (number in parenthesis denotes the thread ID):

There are three tracks associated with each thread:

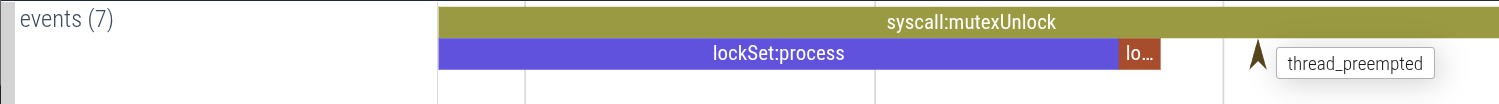

1. events track - event track where all the kernel events can be found: syscalls, locks, moment of preemption by the scheduler, etc.

2. prio track - counter track denoting the thread priority at a given time. In the example, the thread 7’s priority got temporarily elevated from 4 to 1 for the duration of kernel lock possession:



3. sched track - event track for scheduler state events, e.g. runnable marks the time period the thread is ready to be run, and running:cpuN denotes the period in which the thread was run on CPU core N

Advanced features

Previous section should give you the fundamentals for navigating the trace. Depending on your use case, the following section describes additional features that may facilitate the trace analysis.

Flows

Perfetto allows for grouping logically related events into flows that are later visualized in GUI and possible to traverse back and forth.

Some of our events are grouped into such flows: the running:cpuN events are connected for the same CPU core and locked:X lock possession events are connected for the same lock.

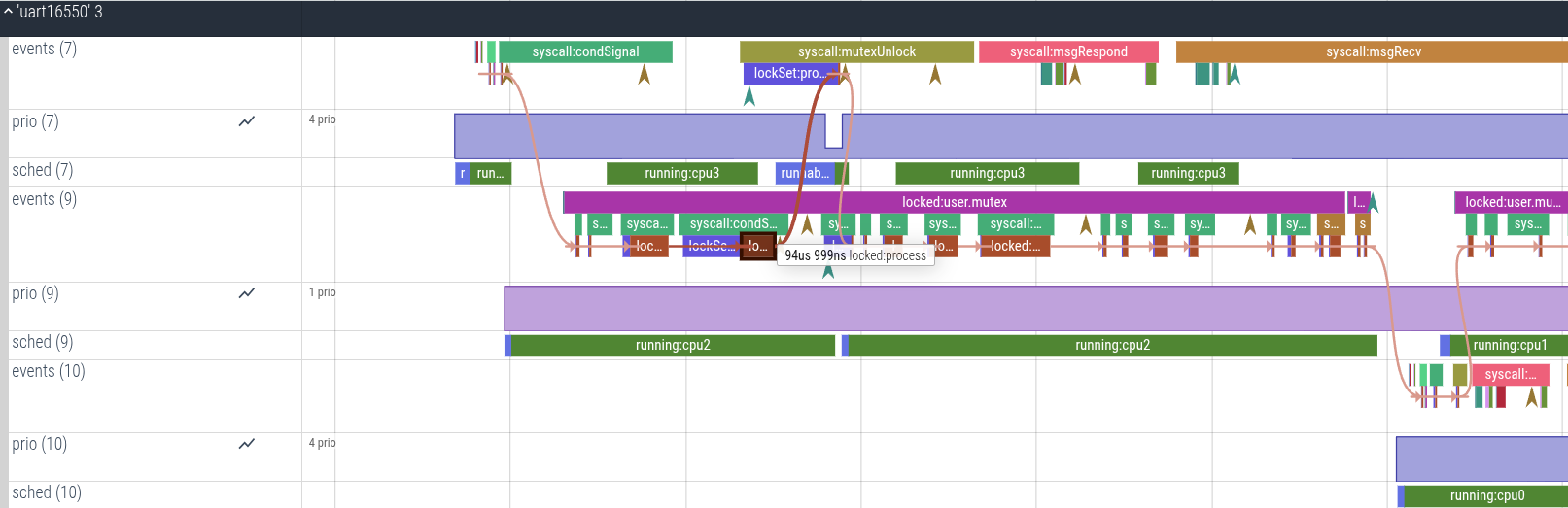

If you click on any locked:X event, the GUI will unveil a flow for a given lock X:

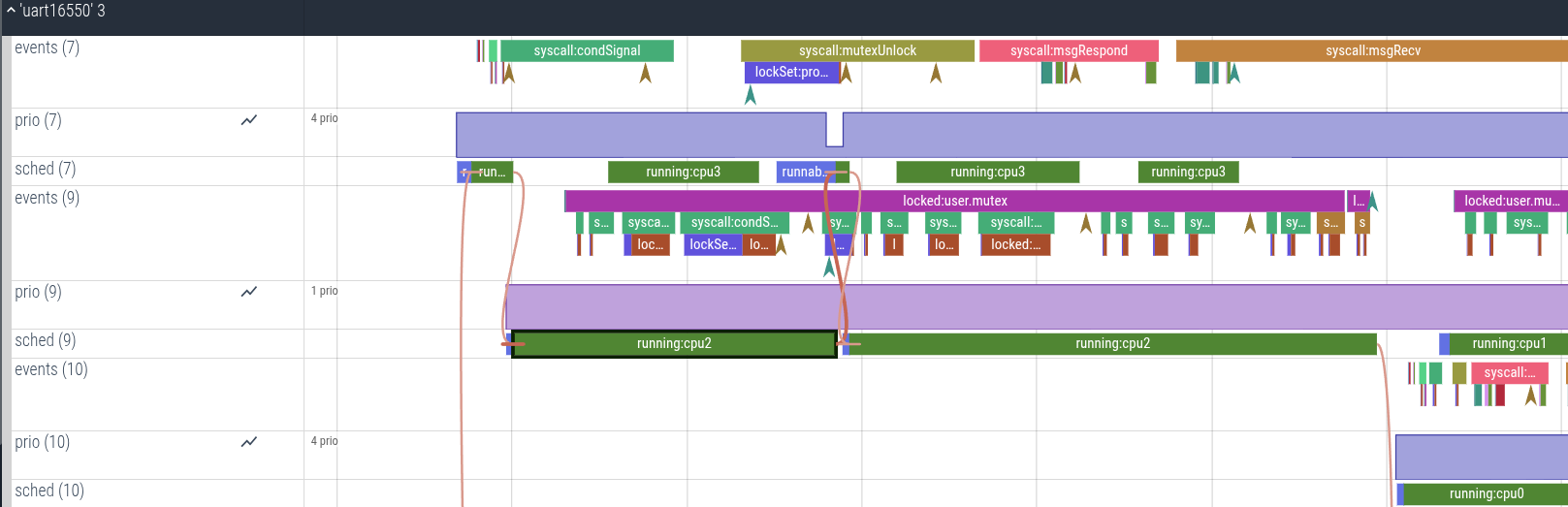

Same will happen if you click on running:cpuN:

If you open the bottom bar by clicking the button on the bottom-right you can see the previous and next events in the flow. By clicking on the flows, you can walk through the flow.

Aggregations

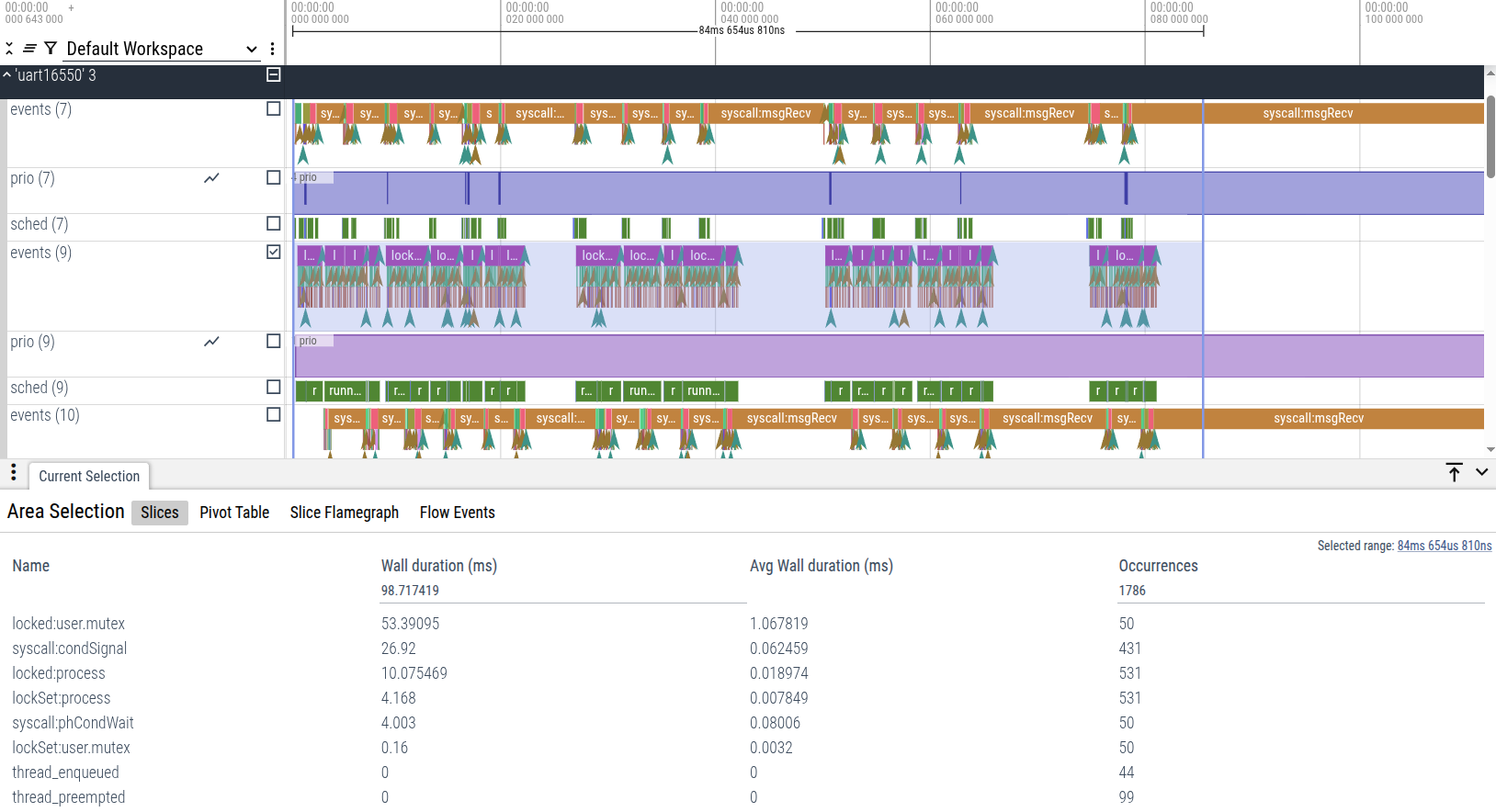

You can select parts of timeline with a mouse drag to perform aggregations. This time, if you open the bottom bar by clicking the button on the bottom-right, you will see statistics for the area selection:

These aggregations are customizable.

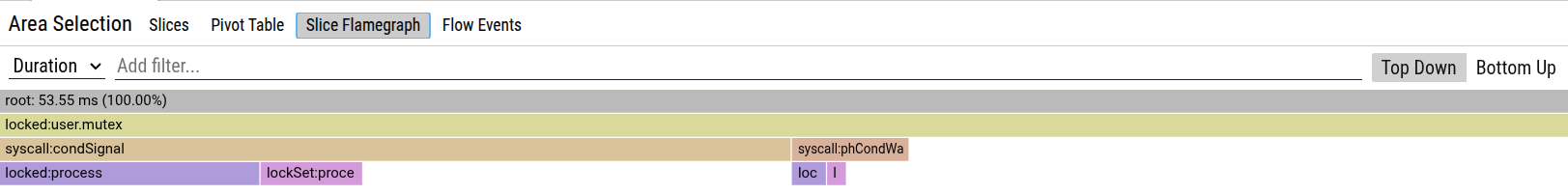

There is also a pivot table (similar to Slices view) and a Slice Flamegraph:

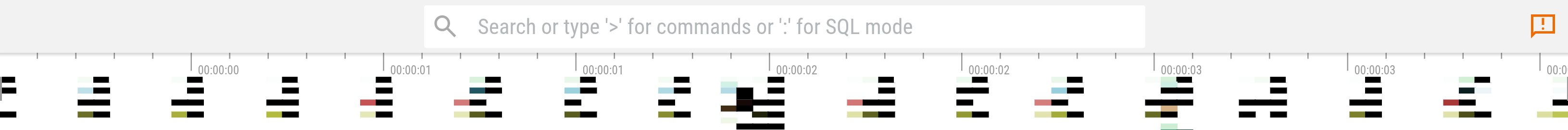

If you are an SQL connoisseur, you can insert : into the search bar…

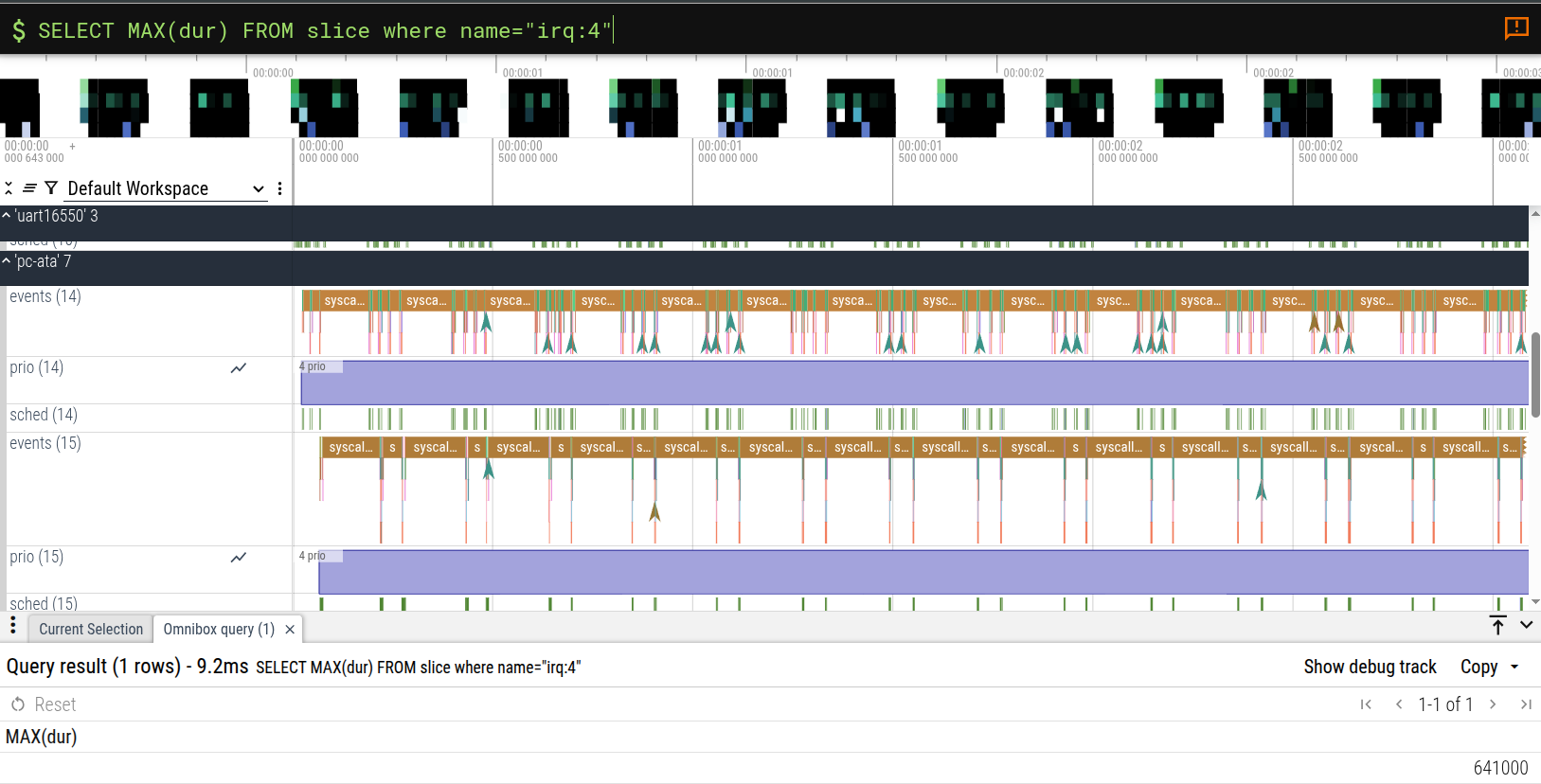

…and do queries, e.g:
